TENT, FIRE-RESISTANT, WALL, LARGE, OLIVE-DRAB AND CREAM AVAILABLE.

The normal capacity, when used for mess purposes, is of 20 to 22 individuals, depending on whether tables of 8 ½ or 10 feet long are used. When equipped with folding camp tables for office purposes, the tent has a capacity of approximately 12 men. This Tent is 14 feet 6 inches wide, 15 feet 2 ¼ inches long, and 11 feet high, with a floor space of 203 square feet. It is an A-type, square-end tent, of rectangular shape. The same type of duck material is used as for the small wall tent.

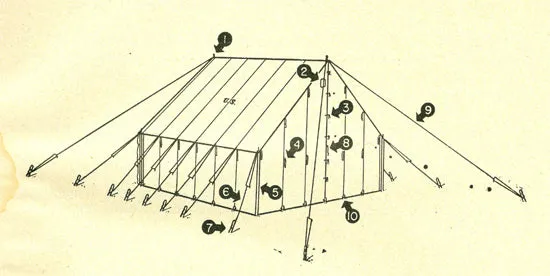

Large Wall Tent elements:

4 X Poles, Tent, Upright, 4-Feet, 9-Inches
14 X Lines, Tent, 9-Feet, w/Eye, 5/16-Inch Diameter (Eave Line)
18 X Pins, Tent, 24-Inches
2 X Lines, Tent, 2-Feet, 6-Inches, Sewed-Two-Ends, ¼-Inch Diameter (Door Wall Line)
22 X Lines, Tent, 2-Feet, 6-Inches, Sewed-Two-Ends, ¼-Inch Diameter (Door Fastener)
26 X Lines, Tent, Foot Stop, ¼-Inch Diameter (Foot Stop)
2 X Poles, Tent, Upright, 12-Feet, Complete, Jointed
1 X Pole, Tent, Ridge, 14-Feet, 2-Inches, Complete, Jointed
26 X Pins, Tent, 16-Inches
16 X Slips, Tent, Wire
2 X Lines, Tent, 3-Feet, 4-Inches, Sewed-One-End, ¼-Inch Diameter (Extension Cloth Line)
2 X Lines, Tent, 3-Feet, 4-Inch, Sewed-One-End, ¼-Inch Diameter (Door Flap Line)
4 X Lines, Tent, 6-Feet, Sewed-Two-Ends, ¼-Inch Diameter (Lacing Line)
2 X Lines, Tent, 45-Feet, Sewed-Two-Ends, Cut-Splice-In-Center, 5/16-Inch Diameter (Guy Line)
